[L3003] Reflected Metallurgical Microscope

1,687,400

Quantity:

설명

Lab/Industrial Microscope

Reflected Metallurgical Microscope

L3003

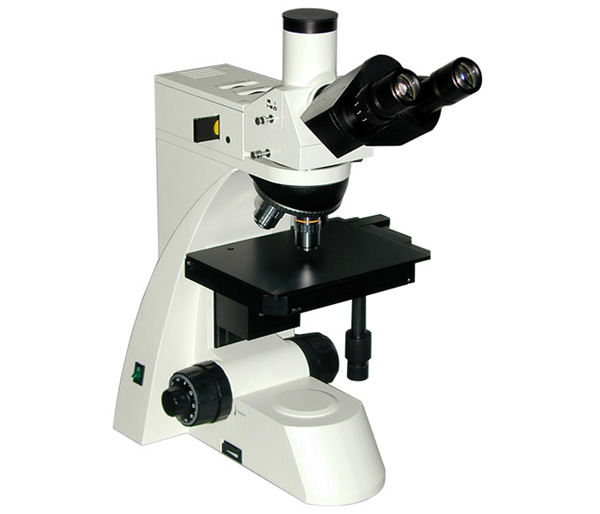

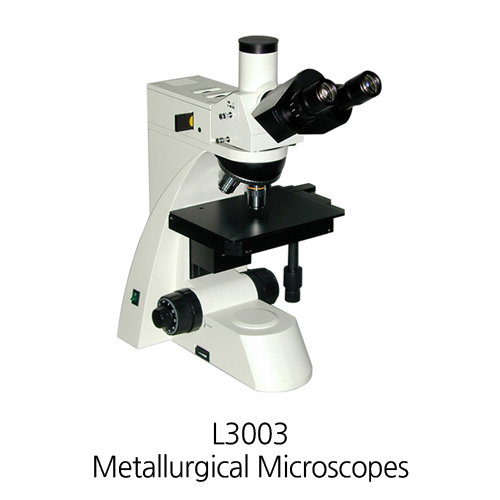

L3003 reflected metallurgical microscope is suitable to observe the surfaces of non-transparent object. It is equipped with vertical
illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. It provide clear and high-contrast picture, beautiful sculpt, convenient operation, etc. It is the ideal instruments for research work in metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.

Advantage

1) With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
2) Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
3) 6V 20W halogen lamp, adjustable brightness.
4) Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.

Standard configuration

Model L3003
Eyepiece Wide field  WF10X(Φ18mm)
Objective Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70
Eyepieces tube Trinocular,Inclination of 30˚, (Analyzer with field diaphragm to switch)
Vertical illumination unit 6V 20W, Halogen lamp,Adjustable brightness
Vertical illumination With field diaphragm ,aperture diaphragm and polarizer,(Y,B,G)filter and Ground glass
Focus system Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
Nosepiece Quadruple Backward ball bearing inner locating
Stage Double layer mechanical ( Size: 210mmX140mm,movingrange:75mmX50mm)

Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Wide field  WF16X(Φ11mm) 1051016
Dividing  10X(Φ18mm) 0.1mm/Div 1121010
Objective Plan achromatic objectives with long working distance (no cover glass) PL L 40X/0.60 2250140
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring) 2250160
Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80 2250180
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) 2250111
Plan achromatic objectives (no cover glass) PL 100X/1.25(Spring, oil) 2240111
Nosepiece Quintuple Backward ball bearing inner locating 032002
CCD adapter 0.4X 810001
0.5X 810004
1X 810002
0.5X with dividing 0.1mm/Div 810003
Camera DV-1 With USB & video output 800001
DV-2 With USB output 800003
DV-3 With video output 800005
Photo unit 2.5X/4X Change over photograph attachment with 10X viewing eyepiece 840001
4X Focusing photograph attachment 840002
MD Adapter 840003
PK Adapter 840004
Digital camera adapter CANON(A610,A620,A630,A640) 820001
