Lab/Industrial Microscope

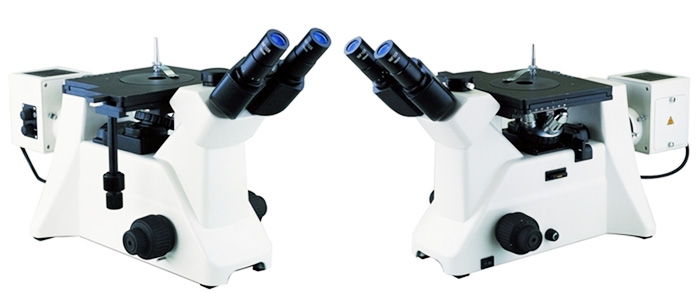

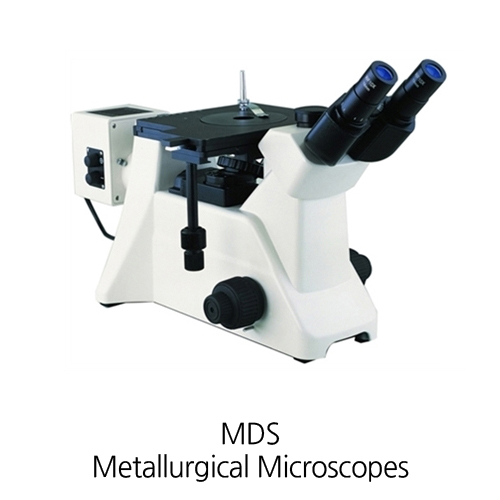

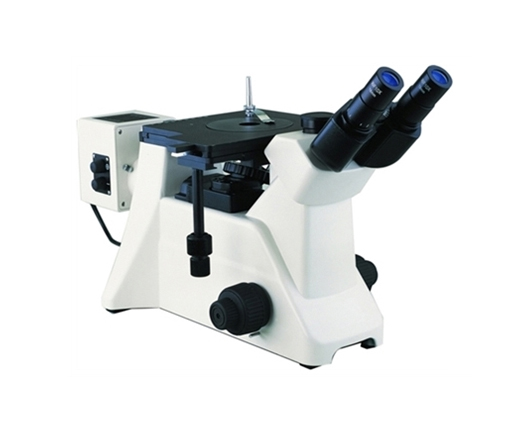

Trinocular Inverted Metallurgical Microscope
MDS
Metallurgical microscope is widely used for metallurgical, mineral identification and crystal, integrated circuit examination and research. It is available to be supplied with transmitted illumination, imaging and viewing system and accessories as a biological microscope for medical institute use.
MDS Series Metallurgical Microscope Outfits
| Items | Specification | MDS |
| Eyepieces | WF10×/Φ18 | S |
| WF10×/Φ20 | O | |
| WF12.5×/Φ14 | S | |
| WF16×/Φ13 | O | |
| Huygenian Ocular 5×/Φ20 | O | |
| WF10×/Φ18 (Reticule) | S | |
| Plan Achromatic Objectives | Plan 2.5×/0.07 | O |
| Plan 4×/0.10 | O | |
| Plan 10×/0.25 | S | |
| Plan 20×/0.35(S) | S | |
| Plan 40×/0.65(S) | S | |
| Plan 100×/1.25(S)(Oil) | S | |
| Trinocular Head | Inclined 45°, Light Distribution:20:80 | S |
| Mechanical Stage | Travel Range: 50mm×40mm Size: 180mm×165mm |
S |
| Stage Plate | 1（Φ10） | S |
| 2（Φ20） | S | |
| 3（Φ40） | O | |
| Set of Stage Plate | S | |
| Main Body | S | |
| Polarizing Slide | S | |
| Analyzing Slide | S | |
| Illuminator | 6V/30W Halogen Lamp Spare Lamp: 2 pcs Spare Fuse: 2 pcs |
S |
| Filters | Blue, Green, Grey, White | S |
| 1× C-mountr | Available for Digital Camera | O |
| 0.6× C-mount | Available for Vidicon | O |
| Available for Digital Camera | O | |
| Micrometer | Division 0.01mm | O |
Note: “S”In Table Is Standard Attachment. “O” Is Optional Accessories.
Packing Size: 581mm×423mm×328mm
Gross Weight: 14.5 kgs Net Weight: 13 kgs
