설명
Lab/Industrial Microscope

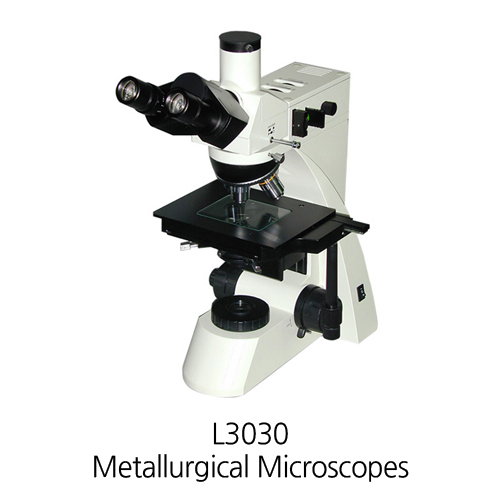

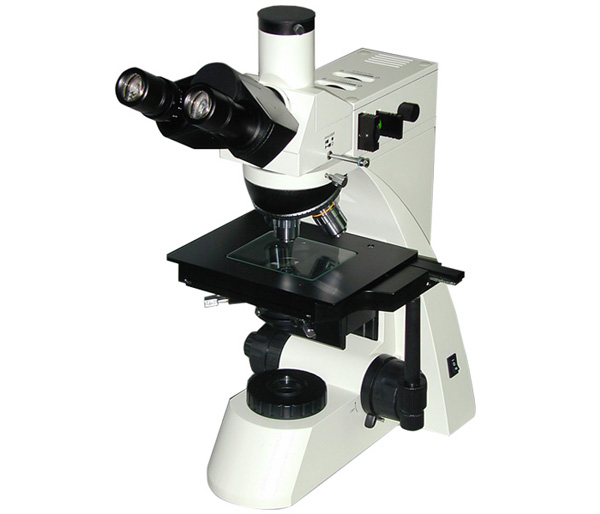

Reflected and Transmitted Metallurgical Microscope
L3030
L3030 reflected and transmitted microscope is suitable to observe surfaces of non-transparent object or transparent object. It is equipped
with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device
in trinocular. It provide clear and high-contrast image, beautiful sculpt,convenient control, etc. It is the ideal instruments in research work in
biology, metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the
colleges and factory.
Advantage
1) With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
2) Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
3) With vertical illuminator and transmitted illuminator, can observe surfaces of non-transparent object or transparent object.
4) 6V 20W halogen lamp, adjustable brightness.
5) Trinocular, can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular eyepieces or to the top port.
Specification
| Model | L3030 |
| Eyepiece | Wide field WF10X(Φ18mm) |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
| Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70 | |
| Eyepieces tube | Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch) |
| Vertical illumination unit | 6V 20w, halogen lamp, adjustable brightness |
| Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and Ground glass | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
| Nosepiece | Quadruple(Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm) |
| Vertical illumination unit | Abbe condenser NA.1.25 Rack & pinion adjustable |
| Blue filter and Ground glass | |
| Collector for illumination with halogen lamp (With field diaphragm ) | |
| 6V 20w, halogen lamp, adjustable brightness |
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Wide field WF16X(Φ11mm) | 1051016 |
| Dividing 10X(Φ18mm) 0.1mm/Div | 1121010 | |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL L 40X/0.60 | 2250140 |
| Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75(Spring) | 2250160 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80 | 2250180 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85(Spring) | 2250111 | |
| Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil) | 2240111 | |
| Nosepiece | Quintuple Backward ball bearing inner locating | 032002 |
| Filter | Green filter | 115002 |
| Yellow filter | 115003 | |
| CCD adapter | 0.4X | 810001 |
| 0.5X | 810004 | |
| 1X | 810002 | |
| 0.5X with dividing 0.1mm/Div | 810003 | |
| Camera | DV-1 With USB & video output | 800001 |
| DV-2 With USB output | 800003 | |
| DV-3 With video output | 800005 | |
| Photo unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | 840001 |
| 4X Focusing photograph attachment | 840002 | |
| MD Adapter | 840003 | |
| PK Adapter | 840004 | |
| Digital camera adapter | CANON(A610,A620,A630,A640) | 820001 |
