Medical Microscope
Slip Lamp Microscope
LYL-Q
The slit lamp microscope is a corneal microscope with a special attachment that permits examination of the endothelium on the posterior surface of the cornea.

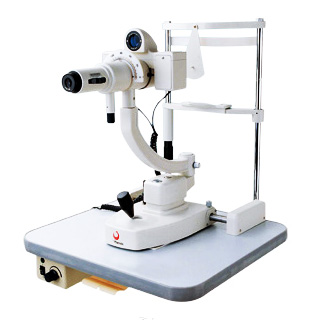

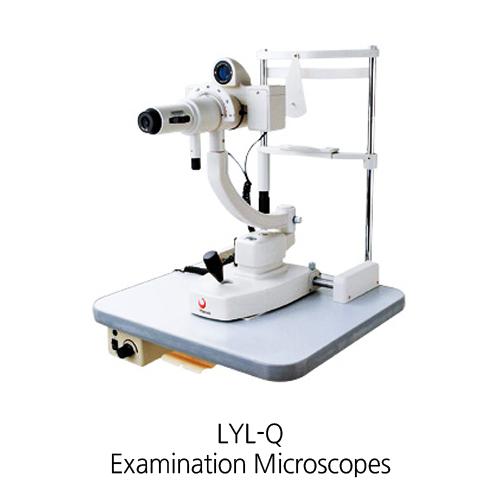

LYL-Q Slip Lamp Microscope
Advantag
– Excellent optical system, easy operation;
– Main optical lens were made of imported material, to assure high clearance and brightness;
– All lens has anti-reflecting, moisture-proof, and mildew-proof coating to assure perfect optical quality under long time use.
Specification
| Parts Name | Parameters |
LYL-Q
|
| Dimension of Surveyor’s Staff | 18mm×24mm |
●
|
| Distance of Surveyor’s Staff and Cornea | 175mm |
●
|
| Total Magnification | 18X |
●
|
| Objective Magnification | 1.2X |
●
|
| Eyepieces WF15X | Widefield eyepieces WF15X, field number φ13mm |
●
|
| Curvature radius | 5.5-11mm |
●
|
| Diopter | 30-60D |
●
|
| Least Graduate | radius: 0.02mm, diopter: 0.25D |
●
|
| Refractive Index | 1.3375 |
●
|
| Least Diameter of Measure | r=5.5mm:φ1.65mm, r=7.5mm:φ2.3mm, r=11mm:φ4 |
●
|
| Astigmatism graduate range | 0-180° |
●
|
| Astigmatism graduate alternation | 5° |
●
|
| Illumination Bulb | 6V/20W, Halogen bulb |
●
|
| Input Voltage | AC 220V/50HZ（or AC 110V/60HZ） |
●
|
| Range of Rise or Drop of Slipway | 0-30mm |
●
|
| Move Range of Slipway | Left and right:100mm, Front and back:90mm |
●
|
| Fluctuate Move Range of Jaw Part | 50mm |
●
|
| Difference of LYQ and LYQ-S model | LYQ-S cornea curvature without work table |
