설명
Medical Microscope

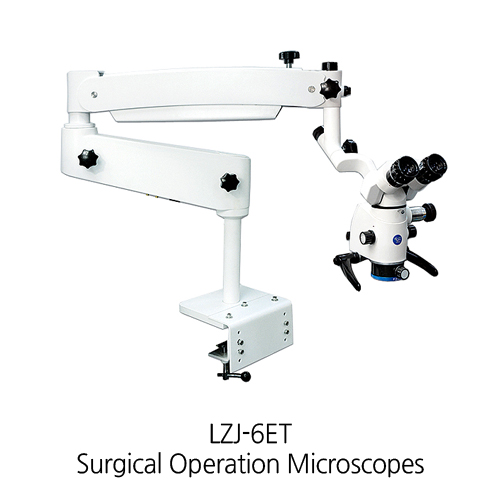

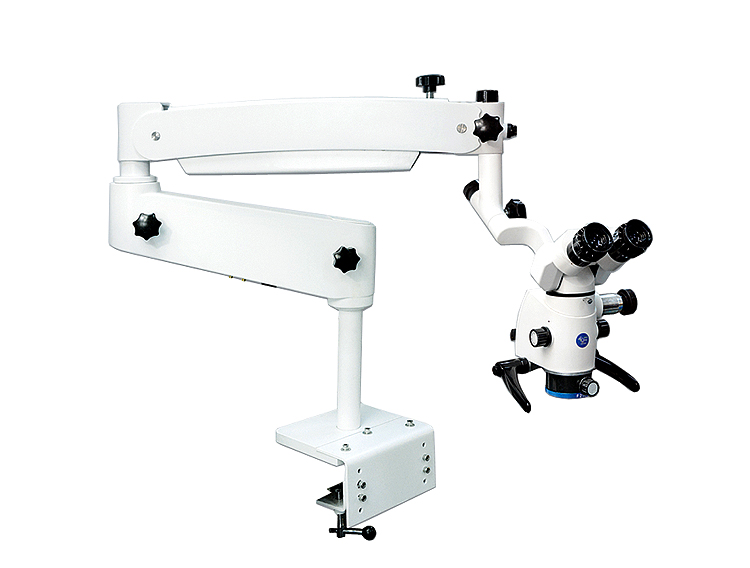

Table Mount Type 5 Step 3.4X-20.5X Surgcial
Operation Microscope for Dental and ENT
LZJ-6ET
The Model LZJ-6ET sugical operation microscope, suitable for the mirco-surgery, can be suitable for the micro-operations and check of dept. of stomatology, dentistry, ENT dept, cranial surgery, department of neurosurgery. Can also carry on teaching, take pictures and make a video recoding besides observing deep cavity.
Features:

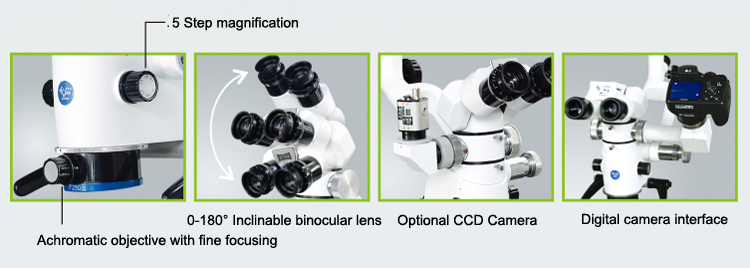

– 180°angle adjustable hinged optical binocular tube In a different position you can maintain upright sitting position to gain maximum comfort.
– With a fine-tuning a large objective lens allows you to easily access clear facial.
– Bright and clear,strong stereoscopic impression optical system let you visual experience to the feeling of never before seen images for your convenience subtle observation, increase your work effciency and treatment.
– Simple damping-conditioning system. The primary mirror can be easily maintained at any location within the movement.
– Other personalized design. Smart spring arm, easy movement;light source and alternate source of a second to easily convert and maintain a safe and reliable treatment; With a limit of the power to open, breaking the regulation of devices and filter pull rod invariably refelects the humanization design philosophy.
Specifications:
|
Item |
Parameter |
|
|
1 |
Observation Head | 0-180° Inclinable binocular lens |
|
2 |
Focal Length of binocular | F=170mm |
|
3 |
Interpupillary distance | 50mm to 80mm |
|
4 |
Field of View | ￠66mm~￠10.4mm |
|
5 |
Eyepiece | 12.5X/18B |
|
6 |
Diopter | ±6D |
|
7 |
Magnification changer | 5 Step magnification 3.4x,5.1x,8.3x,13.5x,20.5x |
|
8 |
Objective | Achromatic, Wtih fine focusing F=250mm; 20mm adjustable range |
|
9 |
Double Handle | Adjustable angle |
|
10 |
Illumination system | Coaxial illumination with LED light source ≥30,000 to 60,000lx，adjustable brightness, with automatic power-off switch |
|
11 |
Field of light spot | ￠85mm at F=250 |
|
12 |
Filter adjuster | Yellow,green and heat filter. |
|
13 |
Table frame | Including big cross arm(510mm), small cross arm(620mm), tabletop fixter and so on,the spread length of total arm:1350mm, the range of up-down ≥350mm |
|
14 |
Balancing arm | 120°balancing arm with damping:freely rotate to any position with damping |
|
Optional accessories |
||
|
（1） |
CCD 1/2 inch optics interface | |
|
（2） |
Digital camera interface | |
|
（3） |
Video camera interface | |
|
（4） |
Beam splitter: 5:5 or 2:8 | |
|
（5） |
Built-in SD or HD CCD camera system | |
|
（6） |
Wireless video | |
|
（7） |
Wireless remote control photograph | |
|
（8） |
Monitor | |
|
（9） |
Large zoom objective:200mm to 320mm | |
|
（10） |
||
|
（11） |
||
|
(12) |
||
Electrical standards:
– Rated Voltage:220V(±10%) or 110V(±10%)
– Maximum power: 250VA
– Rated frequency: 50-60HZ
– Automatic short-circuit protection device
international Standard: YY/T0287-2300 idt ISO 13485:2003 ISO 9001:2008 CE.
Packing information:
– Net weight: 90kg
– Gross weight: 95kg
– Packing size(1 carton/2 pieces): 950*810*320(MM)
Packing list:
– Binocular *1
– Binocular lens *1
– Binocular PD controller *1
– Field of view diameter *1
– Eyepiece magnification *1
– Depending on the degree of adjustment range *1
– Five-shift drum zooming system *1
– With fine-tuning the apochromatic objective lens of focal *1
– Angle adjustable hand *1
– Xenon lamp lighting, illumination *1
– Light spot diameter (F250) *1
– Filter regulator *1
– Model with removable rack *1
– 120 ° damping balance hanging arm *1
