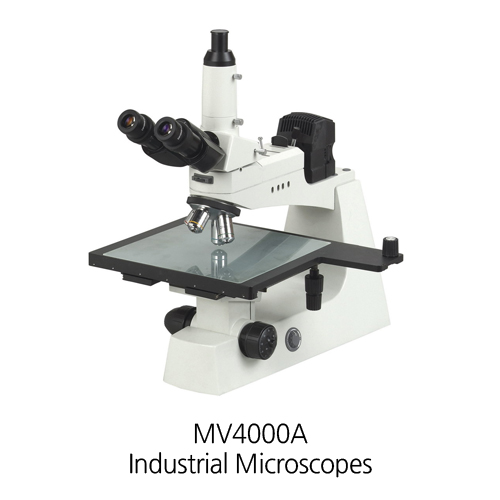

[MV4000A] Industrial Inspection Microscope
₩3,240,000
설명
Lab/Industrial Microscope
Industrial Inspection Microscope
MV4000A
Special designing for semiconductor industry, wafer manufacturing, electronic information industry, metallurgical industry, the item can be widely used semiconductor wafer inspection, FPD, circuit packaging, circuit board, materials, casting / metal / ceramic components, precision mold testing.
Feature
1) Super Large range of motion, size: 10 Inch(250mm)×10 Inch(250mm)
2) Infinity optical system and long working distance for high power objective (3.7mm for 40x
3) The body of the microscope steady (weights approximately 38kgs), and it easy and relax to handle, good manual control functions.
Advantage
With polarizing appliance, and suit to observed for different specimens
It’s very easy and safety to exchange lamp
It can be installed powerful graphic analysis software
|
Specification |
MV4000A |
|
|
Viewing body |
30°Incline Compensation Free Trinocular Body |
S |
|
Eyepiece |
Super Widefield F10X Viewing Field Diameter: ø22mm |
S |
|
Infinity Plan Achromatic Objectives |
4X/0.1 WD=17.3mm |
S |
|
5X/0.12 WD=15.5mm |
O |
|
|
10X/0.25 WD=10.0mm |
S |
|
|
20X/0.4 WD=5.10mm |
S |
|
|
40X/0.65 WD=2.90mm |
S |
|
|
50X/0.75 WD=0.32mm |
O |
|
|
100X/0.80 WD=2mm |
O |
|
|
Nosepiece |
Quadruple Holes |
S |
| Mechanical stage |
Size of Stage : 300×268mm |
S |
|
Focusing System |
Coaxial coarse/fine focusing system,range of focusing: 24mm |
S |
|
Illumination |
6V/20W halogen lamp, brightness adustable |
S |
|
Polarizing appliance |
Analysis of Polarizing device |
O |
|
Color filter |
blue,green,yellow and ground glass |
S |
|
Camera appliance |
C Mount |
O |
|
Camera systems |
USB 2.0 output, 1.3M Pixel CMOS Camera System, |
O |
|
Software |
Image processing software scope image advanced |
O |
|
Note: “S” is standard “O” is Optional |
||
