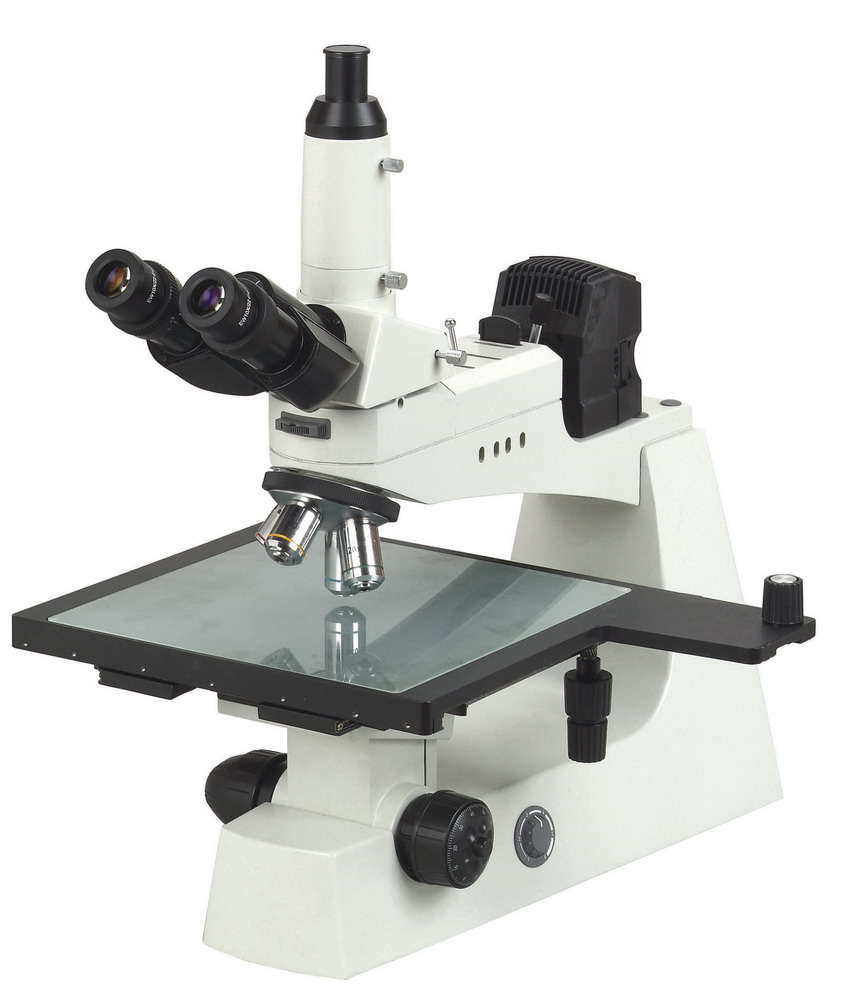

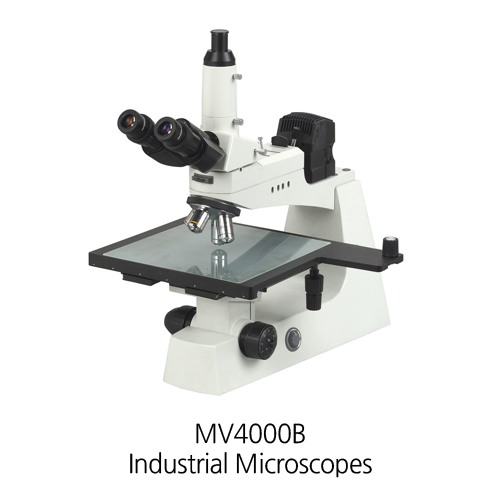

[MV4000B] Industrial Inspection Microscope

7,286,800

Quantity:

설명

Lab/Industrial Microscope

Industrial Inspection Microscope

MV4000B





Special designing for semiconductor industry, wafer manufacturing, electronic information industry, metallurgical industry, the item can be widely used semiconductor wafer inspection, FPD, circuit packaging, circuit board, materials, casting / metal / ceramic components, precision mold testing.

Feature
1) Super Large range of motion, size: 10 Inch(250mm)×10 Inch(250mm)
2) Infinity optical system and long working distance for high power objective (3.7mm for 40x
3) The body of the microscope steady (weights approximately 38kgs), and it easy and relax to handle, good manual control functions.

Advantage


With polarizing appliance, and suit to observed for different specimens


It’s very easy and safety to exchange lamp


It can be installed powerful graphic analysis software

Specification

MV4000A

Viewing body

 30°Incline Compensation Free Trinocular Body
Interpupillary Adjustable Distance: 50-75mm

S

Eyepiece

 Super Widefield F10X Viewing Field Diameter: ø22mm

S

Infinity Plan Achromatic Objectives

 5X/0.12  WD=15.5mm

S

 10X/0.25 WD=10.0mm (BF/DF)

S

 20X/0.4  WD=5.10mm (BF/DF)

S

 50X/0.75 WD=0.32mm

S

 100X/0.80 WD=2mm

S

Nosepiece

 Quintuple Holes

S

Mechanical stage

 Size of Stage : 300×268mm
Size of motion, size: 10 Inch(250mm)×10 Inch(250mm)

S

Focusing System

 Coaxial coarse/fine focusing system,range of focusing: 24mm
Division of Fine Focus Adjustment:0.002mm

S

Illumination

 24V/100W halogen lamp, brightness adustable

S

Polarizing appliance

 Analysis of Polarizing device

O

Color filter

 blue,green,yellow and ground glass

S

Camera appliance
CCD adapter

 C Mount

O

Camera systems

 USB 2.0 output, 1.3M Pixel CMOS Camera System,
Resolution 1280*1024,1/2″

O

Software

 Image processing software scope image advanced

O

Note: “S” is standard  “O” is Optional; BF/DF is bright field and dark field
Packing:  demension: 68x68x55CM; G.W: 35kg
