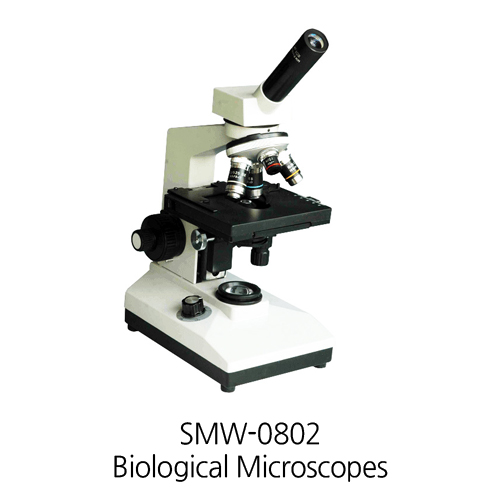

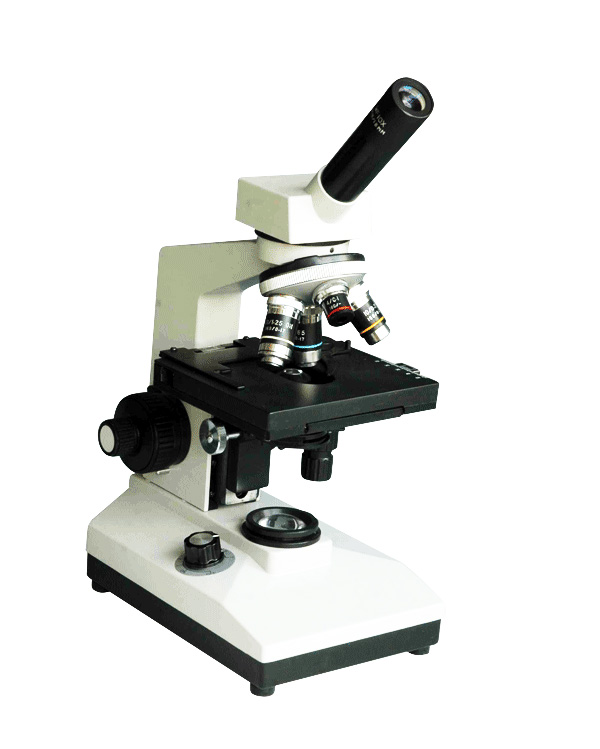

[SMW-0802] 40X-1000X Monocular Biological Microscope

493,800

Quantity:

설명

Lab/Industrial Microscope

40X-1000X Monocular Biological Microscope

SMW-0802


The product is widely suitable to observe and analyze in experiment for medicine and hygiene, farming and forestry of plant protection, animal husbandry and aquatic product, biological engineering, college and school etc.



Model SMW-0802
Total Magnification 40X-1000X
Viewing Body Square 45 degree Incline Monocular Body S
Square 45 degree Incline Dual Viewing Body
30 degree Incline Binocular Body Interpupillary Adjustable
30 degree Incline Trinocular Body Interpupillary Adjustable Distance: 55mm-75mm
Eyepiece WF10X (Viewing Field Diameter:ø18mm)
Objectives Adjustable Parfocal Achromatic Objective 4X/NA 0.1, 10X/NA 0.25, 40X(s)/NA 0.65, 100X(s,oil)/NA.1.25
Mechanical Stage Size:140mmX120mm, Moving Range:70mmX40mm,
Vernier Division: 0.1mm
Nosepiece Nosepiece of four holes revolving on ball
Condenser Abbe Condenser:N.A.1.25, Elevating Range: 15mm
Focusing Coaxial coarse/fine focusing adjustment.
Focusing Range: 20mm. Division of Fine Focus
Adjustment: 0.002mm
Illumination 6V 20W Halogen Lamp With Adjustable Brightness, Free Voltage 100V-240V. Filter (blue)

Note: “-” is unavailable, “S” is standard, “O” is optioanl.
1) Adjustable parfocal objective is the patent product of manufacturer,It can improve the parfocal character of the instrument.
2) The mechanical stage of no gap surface-plate is the patent product of manufacturer. It can be cleaned easily.
