[SMW-8F-0403] 40X-1000X Dual Viewing Biological Microscope

475,300

Quantity:

설명

Lab/Industrial Microscope

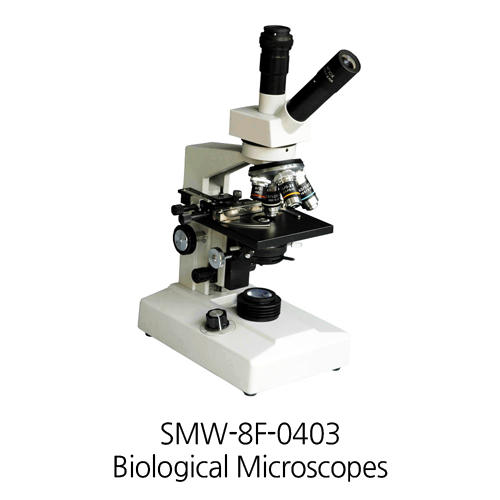

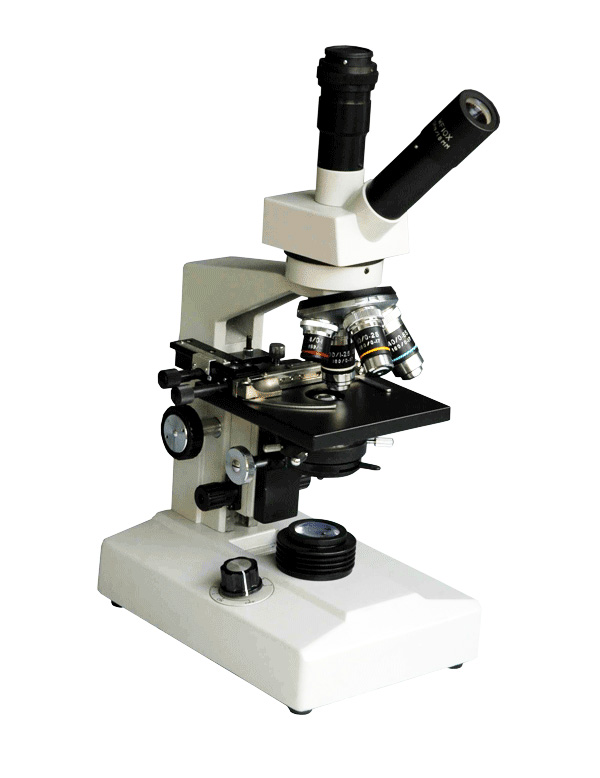

40X-1000X Dual Viewing Biological Microscope

SMW-8F-0403


The product is widely suitable to observe and analyze in experiment for medicine and hygiene, farming and forestry of plant protection, animal husbandry and aquatic product, biological engineering, college and school etc.

Model SMW-8F-0403
Total Magnification 40X-1000X
Viewing Body Square 45 degree Incline Monocular Body
Square 45 degree Incline Dual Viewing body S
30degree Incline Binocular Body,Interpupillary Adjustable Distance: 55mm-75mm
30degree Incline Trinocular Body (2/8 Light Spectrum), Interpupillary Adjustable Distance: 55mm-75mm
Eyepiece WF10X (Viewing Field Diameter: ø18mm)
Objectives Adjustable Parfocal Achromatic Objective 4X/NA 0.1,10X/NA 0.25,40X(s)/NA 0.65,100X(s,oil)/NA.1.25
Fixed Stage Size: 110mmX115mm,Moving Range: 60mmX30mm,Vernier Division: 0.1mm
Nosepiece Four Holes Plane Nosepiece
Condenser Abbe Condenser: N.A.1.25, Elevating Range: 15mm
Focusing Separative Coaxial Coarse/Fine Focusing System. Fine Focus Adjustment Range: >2mm. Coarse Focus Adjustment Range: 20mm (with Coarse Focusing Spare Limiter And Knob Slipping Protection Unit)
Illumination Incandescent lamp 220V/20W or 110V/20W S
Fluorescent Lamp 220V/5W or 110V/5W O
6V 20W Halogen Bulb, With Adjustable Brightness, Free Voltage 100V-240V O

Note: “-” is unavailable, “S” is standard, “O” is optioanl.
