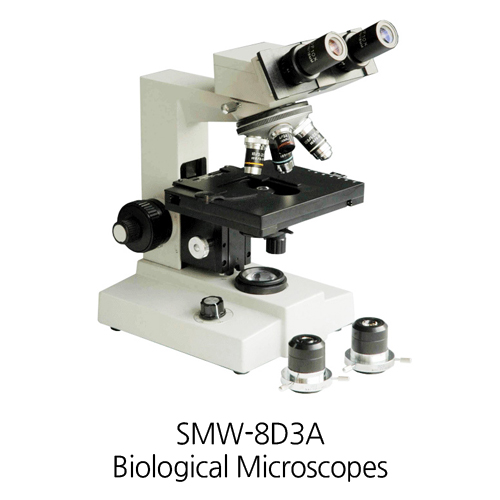

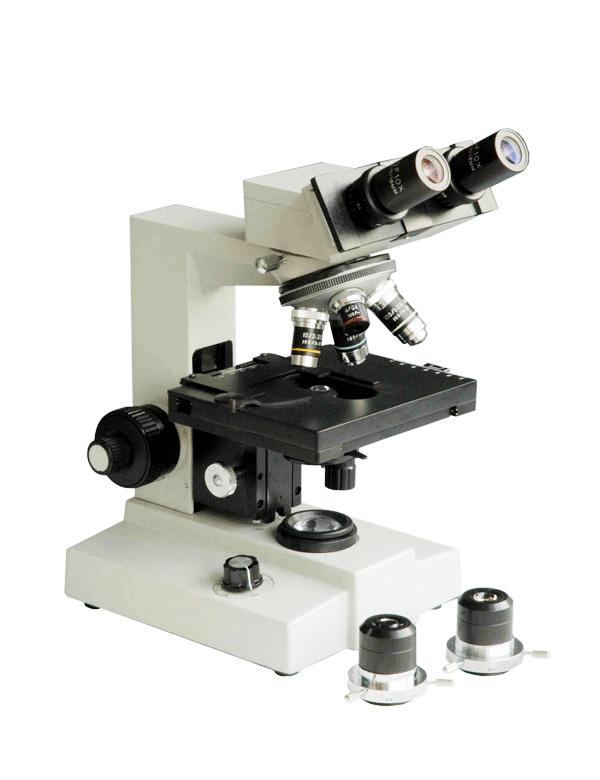

[SMW-8D3A] 40X-1600X Binocular Biological Microscope

900,400

Quantity:

설명

Lab/Industrial Microscope

40X-1600X Binocular Biological Microscope

SMW-8D3A

The product is widely suitable to observe and analyze in experiment for medicine and hygiene, farming and forestry of plant protection, animal husbandry and aquatic product, biological engineering, college and school etc.

Model SMW-8D3A
Total Magnification 40X-1600X
Viewing Body 30 degree Incline Binocular Body, Interpupillary Adjustable Distance: 55mm-75mm S
30 degree Incline Trinocular Body, Interpupillary Adjustable Distance: 55mm-75mm
Eyepiece WF10X(Viewing Field Diameter:ø18mm), WF16X(Viewing Field Diameter:ø11mm)
Adjustable Parfocal Achromatic Objectives 4X/NA0.1, 10X/NA0.25, 40X(s)/NA0.65, 100X(s)/NA.1.25
4X/NA0.1, 10X/NA0.25, 40X(s)/NA0.65, 100X(with diaphragm)/NA0.9-1.25(s, oil) S
Mechanical Stage Size:160mmX130mm, Moving Range:76mmX50mm, Vernier Division: 0.1mm
Nosepiece Nosepiece of four holes revolving on ball
Condenser Abbe Condenser:N.A.1.25, Elevating Range:15mm S
Dark Field Condenser( Dry, Immersion ) S
Focusing Coaxial Coarse/Fine Focusing Adjustment, Focusing Range:20mm, Division of Fine Focus Adjustment:0.002mm
Illumination 6V 20W Halogen Lamp With Adjustable Brightness, Free Voltage 100V-240V, Filter(blue, yellow, ground glass)
