[SMW-8F-0303] 40X-400X Dual Viewing Biological Microscope

438,400

Quantity:

설명

Education Microscope

Student Microscopes

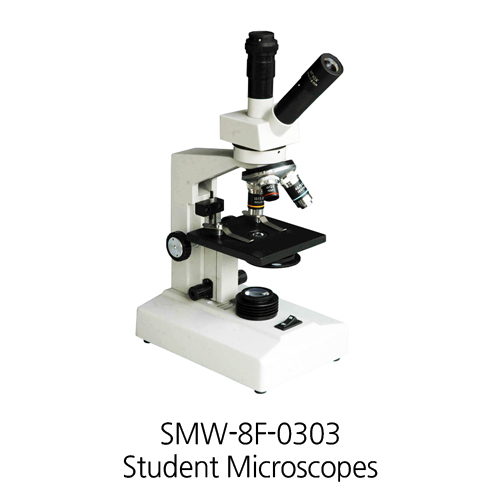

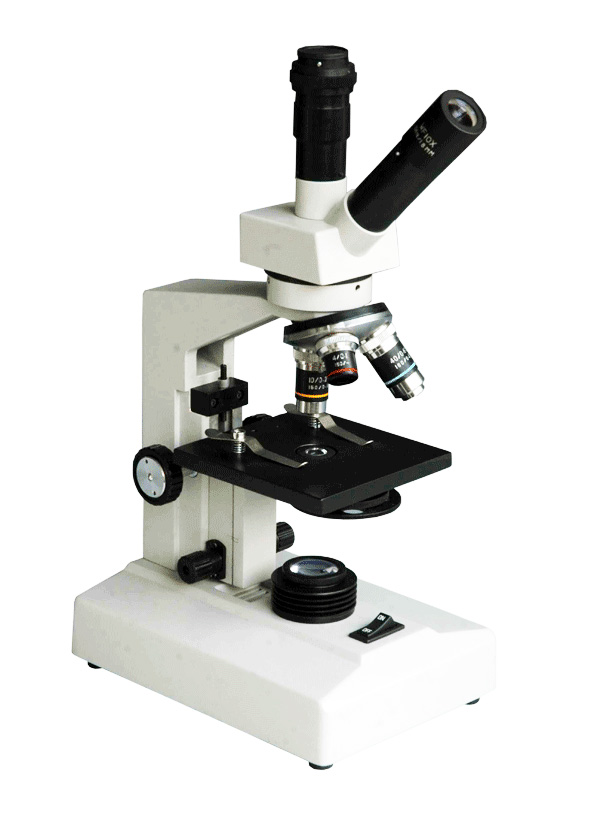

40X-400X Dual Viewing Biological Microscope

SMW-8F-0303



This type of microscope is also called a teaching microscope since it is often used by teachers and students for dual simultaneous viewing of specimens. The teacher can view the specimen and give instructions to the student who is examining the specimen at the same time.

Model SMW
-8F-
0302
SMW
-8F-
0303
Total Magnification

40X-400X

Viewing Body
Square 45 degree Incline, 360 degree rotation Monocular Body
S
Square 45 degree Incline, 360 degree rotation Dual Viewing body
S
Eyepiece
WF10X (Viewing Field Diameter: ø18mm)
Objectives
Adjustable Parfocal Achromatic Objective 4X/NA 0.1, 10X/NA 0.25, 40X(s)/NA 0.65
Fixed Stage
Size: 110mmX115mm, Stage with clip
Nosepiece
Three Holes Plane Nosepiece
Condenser
N.A.0.65, With Five Holes Diaphragm
Focusing
Separative Coaxial Coarse/Fine Focusing System. Fine Focus Adjustment Range: >2mm. Coarse Focus Adjustment Range:20mm(with Coarse Focusing Spare Limiter And Knob Slipping Protection Unit)
Illumination

Incandescent lamp 220V/20W or 110V/20W

S
S

Fluorescent Lamp 220V/5W or 110V/5W

O
O

6V 20W Halogen Bulb, With Adjustable Brightness, Free Voltage 100V-240V

O
O
