[SMW-8F-0403] 40X-1000X Dual Viewing Biological Microscope

512,300

Quantity:

설명

Education Microscope

Student Microscopes

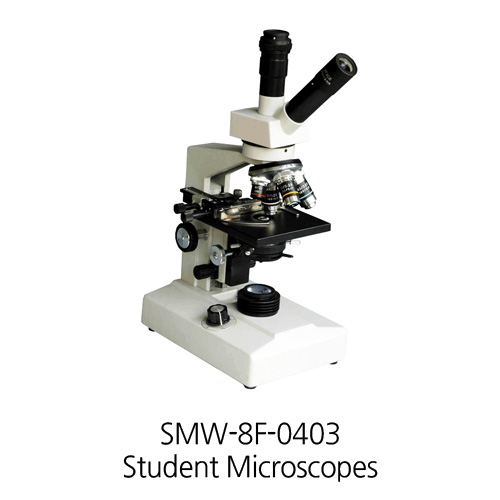

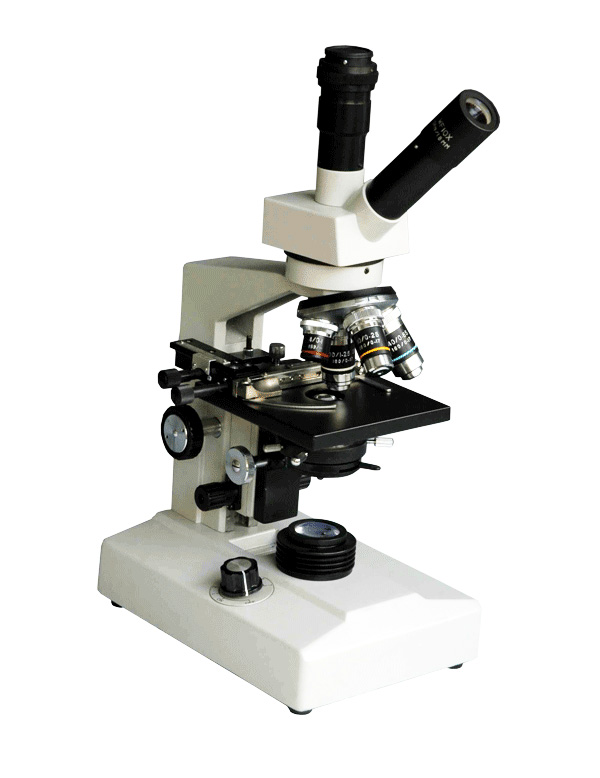

40X-1000X Dual Viewing Biological Microscope

SMW-8F-0403

This type of microscope is also called a teaching microscope since it is often used by teachers and students for dual simultaneous viewing of specimens. The teacher can view the specimen and give instructions to the student who is examining the specimen at the same time.

Model
SMW
-8F-
0402
SMW
-8F-
0403
SMW
-8F-
0408
SMW
-8F-
0409
Total Magnification

40X-1000X

Viewing Body
Square 45 degree Incline Monocular Body
S
Square 45 degree Incline Dual Viewing body
S
30degree Incline Binocular Body,Interpupillary Adjustable Distance: 55mm75mm
S
30degree Incline Trinocular Body (2/8 Light Spectrum), Interpupillary Adjustable Distance: 55mm75mm
S
Eyepiece
WF10X (Viewing Field Diameter: ø18mm)
Objectives
Adjustable Parfocal Achromatic Objective 4X/NA 0.1,10X/NA 0.25,40X(s)/NA 0.65,100X(s,oil)/NA.1.25
Fixed Stage
Size: 110mmX115mm,Moving Range: 60mmX30mm,Vernier Division: 0.1mm
Nosepiece
Four Holes Plane Nosepiece
Condenser
Abbe Condenser: N.A.1.25, Elevating Range: 15mm
Focusing
Separative Coaxial Coarse/Fine Focusing System. Fine Focus Adjustment Range: >2mm. Coarse Focus Adjustment Range: 20mm (with Coarse Focusing Spare Limiter And Knob Slipping Protection Unit)
Illumination

Incandescent lamp 220V/20W or 110V/20W

S
S
S
S

Fluorescent Lamp 220V/5W or 110V/5W

O
O
O
O

6V 20W Halogen Bulb, With Adjustable Brightness, Free Voltage 100V-240V

O
O
O
O
