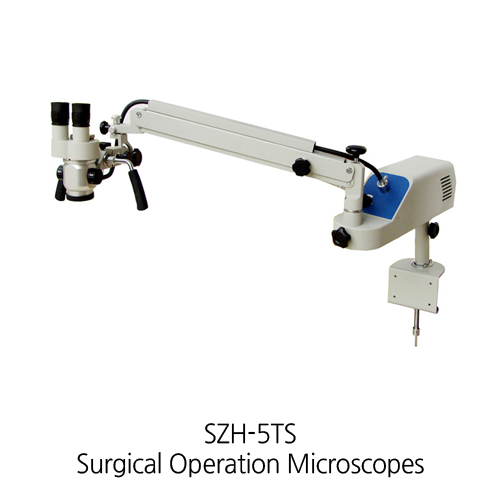

[SZH-5TS] Table Mounted ENT Surgical Operation Microscope/Portable ENT Microscope

4,145,000

Quantity:

설명

Medical Microscope

Table Mounted ENT Surgical Operation Microscope/Portable ENT Microscope

SZH-5TS

SZH Series Operation Microscopes using fibre-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be used for micro-operation in ear-nose-throat, ophthalmology, gynecology and surgery.

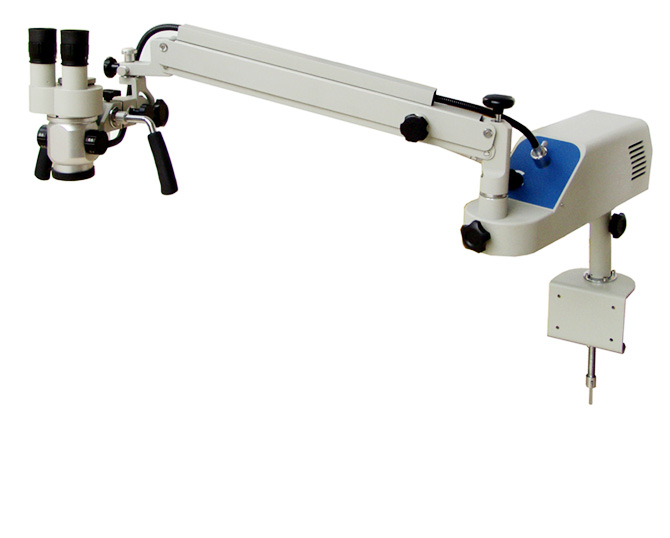

SZH-5TS Table Mounted ENT Surgical Operation Microscope/Portable ENT Microscope

Observation angle: Straight
Magnification of eyepiece: 18.5X
Focal length of objective: F=200mm & F=300mm
Magnification changer: 5-step: 0.4X, 0.6X, 1X, 1.6X, 2.5X
Total Magnification: 2.8X-26.5X
Fine focusing distance: 20mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp
Filter: Build-in green filter
With table-clamp

Specification for SZH Series Operation Microscope:

Item

SZH-5TS

SZH-5TT

SZH-5FS

SZH-5FT

SZH-5FSB

SZH-5FTB

SZH-5FRB

Observation angle

Straight

45°Tilted

Straight

45°Tilted

Straight

45°Tilted

From -40°to 80°

Magnification of eyepiece

18.5X

12.5X

Focal length of objective

200mm & 300mm

Working distance

185mm & 285mm

Magnification changer

5-step magnification change: 0.4x, 0.6x, 1x, 1.6x, 2.5x

Total magnification

1.9X-17.5X

3.3X-31.2X

Beamsplitter

No

50:50 Beamsplitter

TV adapter

No

C-mount 1/3” CCD camera attachable

Demonstrator

No

Optional

Yes

Photo adapter

No

Optional

Fine focusing distance

20mm

Filter

Built in green filter

Balanced arm

Counterweight adjustable

Illumination system

21V150W halogen lamp, brightness adjustable

Fiber-optic cable

1300mm

Stand

Table clamp

Long column fitted on the round base with 5 jaws

Portable hard case

Yes

No

Optical characteristics for SZH-5FRB

Focal length of objective

F=200mm

F=300mm

Division value on handwheel

0.4x

0.6x

1x

1.6x

2.5x

0.4x

0.6x

1x

1.6x

2.5x

Total magnification

5x

7.5x

12.5x

20x

31.2x

3.3x

5x

8.3x

13.3x

20.8x

Linear field (mm)

65

43

22

17

12

90

60

38

24

15

Resolution (lp/mm)

33.6

44.5

63

79.4

89.1

23.6

31.5

42

44.5

59.5

Optical characteristics for other SZH operation microscope

Focal length of objective

F=200mm

F=300mm

Division value on handwheel

0.4x

0.6x

1x

1.6x

2.5x

0.4x

0.6x

1x

1.6x

2.5x

Total magnification

4.3x

6.4x

10.6x

17

26.5x

2.8x

4.2x

7.1x

11.3x

17.8x

Linear field (mm)

65

43

22

17

12

90

60

38

24

15

Resolution (lp/mm)

33.6

44.5

63

79.4

89.1

23.6

31.5

42

44.5

59.5
