[YSX-103] 3 Step Magnification (3X-12X) Table Mounted ENT Surgical Operation Microscope /Portable ENT Microscope

2,667,000

Quantity:

설명

Medical Microscope

3 Step Magnification (3X-12X) Table Mounted ENT Surgical Operation Microscope /Portable ENT Microscope

YSX-103



YSX Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

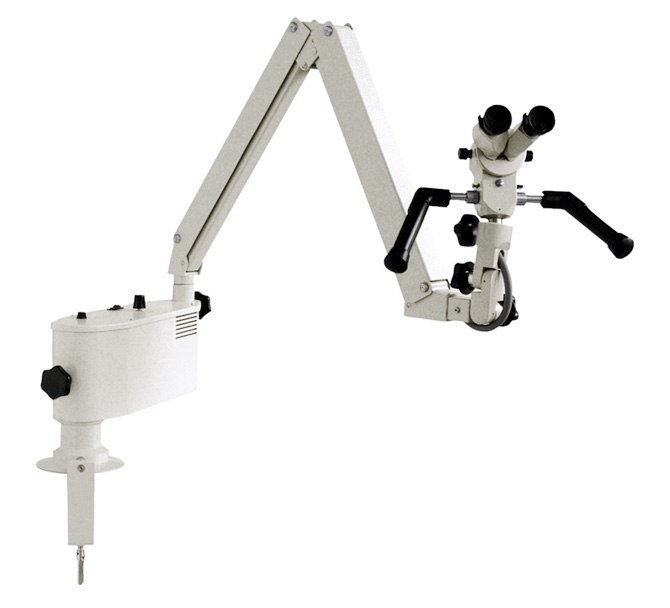

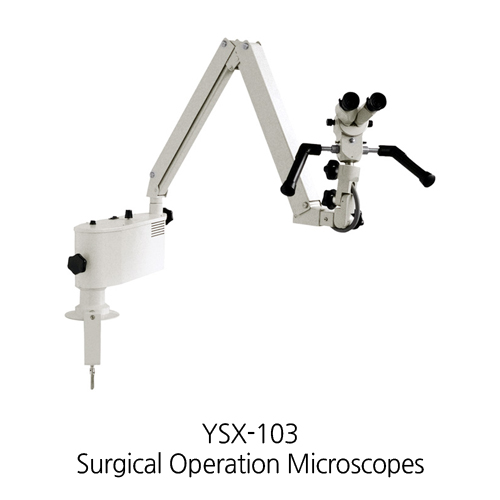

YSX-103 Table Mounted ENT Operation Microscope/Portable ENT Microscope

Observation angle: Straight
Magnification of binocular: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination > 30,000lx
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints. With table mount clamp
Power supply: AC100V-AC240V
Optional accessories:
Objective F=250mm & F=400mm;
Wall mount bracket

Table of Specification for YSX Series Operation Microscope:

Item

YSX101

YSX102

YSX103

YXS104

YSX120

YSX130

Binocular observation

Straight

45º Tilted

Straight

45º Tilted

Straight

45º Tilted

Magnification of binocular

6X

Interpupillary distance

50mm-80mm

Diopter

±5D

Magnification changer

3-step magnification change: 0.6X,1X,1.6X

Focal length of objective

Two objectives: F=200 & F=300mm (M45x0.75mm)

Total magnification

3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear field

60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Beamsplitter

No

50:50 Beamsplitter

Video camera adapter

C-mount 1/3 inch video camera attachable

Fine focusing range

10mm

Filter

Built-in green and yellow filters

Balancing arm

2-part arm with universal joints

2-part arm with universal joints, counterweight adjustable and can be locked

Illumination system

Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination >30,000lx

Stand

2-part column fitted on the five-star base with casters

Table mount clamp

2-part column fitted on the five-star base with casters

Optional accessories

Demonstrator,  Camera (MDCCC200, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket



Table of Optical Characteristics for YSX Series Operation Microscope:

Focal length of objective

F=200mm

F=250mm(optional)

F=300mm

F=400mm(optional)

Magnification on handwheel

1.6X

1X

0.6X

1.6X

1X

0.6X

1.6X

1X

0.6X

1.6X

1X

0.6X

Total magnification

12X

7.5X

4.7X

9.6X

6X

3.7X

8X

5X

3X

6X

3.8X

2.3X

Linear field (mm)

15.8

25.3

40.6

19.7

31.6

50.7

23.6

37.9

60.8

31.5

50.5

81

Exit pupil diameter (mm)

1.04

1.66

1.04

1.66

1.04

1.66

1.04

1.66

Exit pupil distance (mm)

15.3

Resolution (LP/mm)

67

44.5

29.7

60

35.4

27

47.2

31.5

23.6

35

27

19.8
