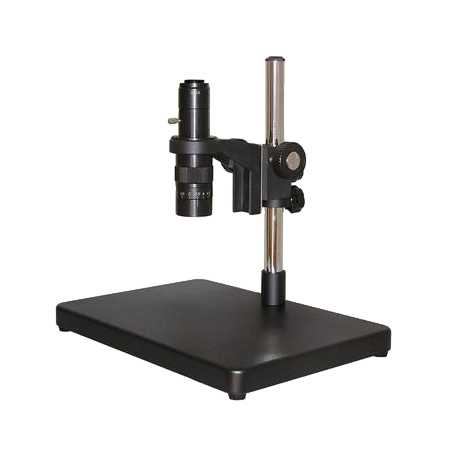

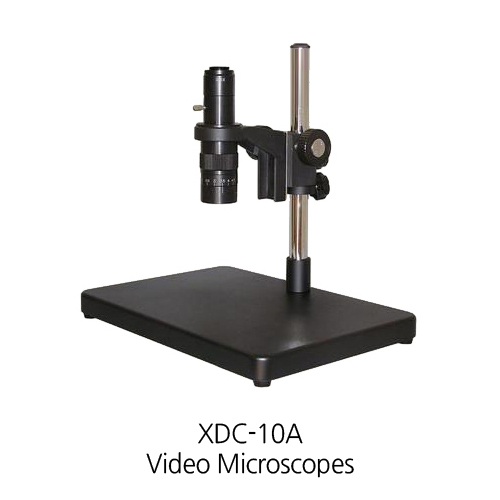

[XDC-10A] Video Microscopes

375,300

Quantity:

설명

Lab/Industrial Microscope

Video Microscopes

XDC-10A



-SPECIFICATION – Magnification of the main zoom objective: 0.7×-4.5×
Magnification of the photographic eyepiece: 0.5×
Working distance: 95mm
Fousing range of the knob: 60mm
Adjustment range of the elevator: 110mm(XDC-10A is 250mm)
Illuminator
Input voltage: 110V or 220V
Output: the incident illuminator: 12V 10W halogen lamp with cup.
the transmitted illuminator: 12V 10W halogen lamp-STANDARD EQUIPMENT –

XDC-10A XDC-10B XDC-10C XDC-10D XDC-10E XDC-10F
A type stand *
B type stand *
C type stand *
D type stand *
E type stand *
F type stand *
0.7×-4.5×
main zoom objective
* * * * * *
0.5×
photographic eyepiece
* * * * * *
hexagon spanner *
-OPTIONAL ACCESSORIES –

Photographic eyepiece: 0.35×,0.5×,0.75×,1×,1.5×,2×
Auxiliary objective:0.3×(only for XDC-10A),0.5×,0.75×,1.5×,2×
Mechanical stage
