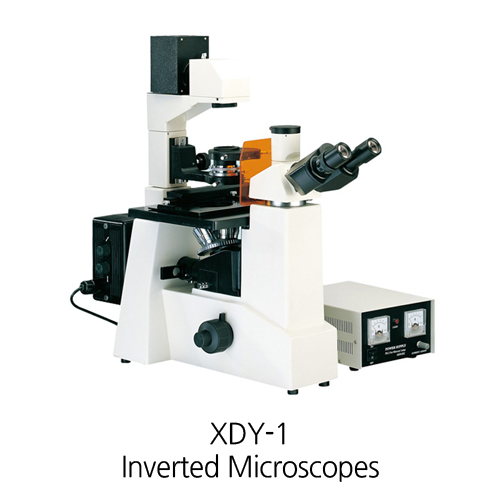

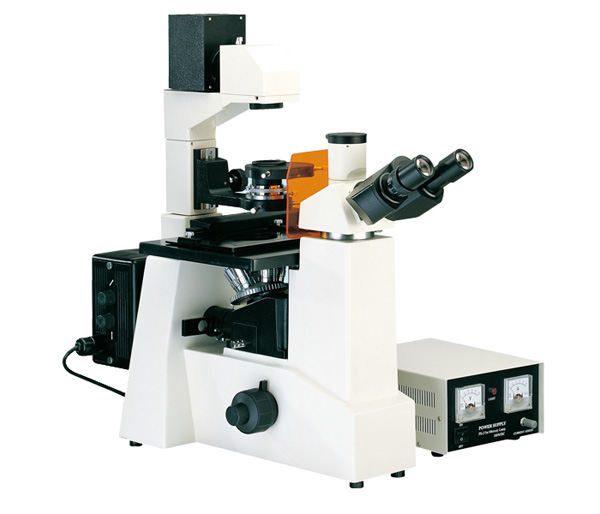

[XDY-1] Inverted Fluorescence Microscope

7,859,700

Quantity:

설명

Lab/Industrial Microscope

Inverted Fluorescence Microscope

XDY-1





XDY-1 Inverted & Reflected Fluorescence Microscopes is composed with inverted microscope and reflected fluorescence microscope, equipped with long working distances plan achromatic objectives and wide field eyepieces, you can use long working distance phase contrast objectives and special long working distance condenser with phase contrast unit when inverted observation, and change the fluorescence excitation system freely. The microscope has clear image, wide field, compact framework, beautility sculpt and comfortable operation etc. It’s mainly applied to observe the living cell and tissue, liquid and deposits etc, also to observe transparent living without staining and fluorescence slice up, it is the ideal instrument for researching in biology, cells cytology, oncology, genetics, immunology etc. The microscope can be used for scientific researching, medical treatment, epidemic prevention and animal husbandry etc.

Advantage

1) With wide field eyepieces, Long distance plan achromatic objectives the field of view is widely and clear.
2) Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
3) The mechanical stage movement mechanism can be taken out.
4) Equipped with phase contrast unit, include long working distance condenser, phase contrast objective and centering telescope.
5) Equipped with fluorescence unit, include four group of fluorescence filter. 6V 30W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit.

Specification

Model XDY-1
Eyepiece Wide field eyepiece WF10X(Φ20mm)
Objective Long working distance plan achromatic objectives PL L 10X/0.25
Long working distance plan achromatic objectives PL L 25X/0.40
Long working distance plan achromatic objectives PL L 40X/0.60
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
Eyepiece tube Trinocular (Inclination of 30°, 100% image light for photography capable)
Focus system Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece Quintuple (Ball bearing inner locating)
Stage Double layer mechanical (Size: 224mmX208mm, moving range: 112mmX79mm)
Filter Frosted filter
Blue filter
Green filter
Shelf of specimen Match to install |μ68mm or 77mmX29mm culture utensil
Match to install 82mmX57mm culture utensil
Match to install 128mmX85mm 96 holes culture utensil
Reflected fluorescence system Mercury lamp house 100W/DC
Power supply unit:AV:110V or 220V
Fluorescence filter system B exciton wavelength:420~485nm
Fluorescence filter system G exciton wavelength:460~550nm
Fluorescence filter system UV exciton wavelength:330~400nm
Fluorescence filter system V exciton wavelength:395~415nm
Turnplate phase contrast unit Centering telescope
Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm

Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Wide field? WF16X(|μ11mm) 1051016
Dividing 10X (|μ20mm), 0.1mm/Div 1120010
Condenser Ultra long working distance,W.D.:70mm 050006
Filter Yellow filter 115003
Fluorescence power supply 100W fluorescence power supply(Wide voltage range and constant power and calculagraph) 100003
Phase contras Compensation phase contrast 112102
CCD adapter 0.4X 812001
0.5X 812004
1X 812002
0.5X with dividing 0.1mm/Div 812003
Camera DV-1(With USB & video output) 800001
DV-2(With USB output) 800003
DV-3(With video output) 800005
Digital camera adapter CANON digital camera adapter(A610,A620,A630,A640) 821001
Photograph unit 2.5X/4X Change over photograph attachment with 10X viewing eyepiece 840001
4X Focusing photograph attachment 840002
MD Adapter 840003
PK Adapter 840004
