설명
Lab/Industrial Microscope

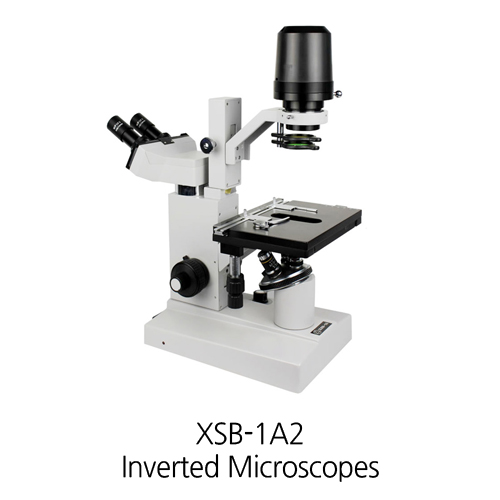

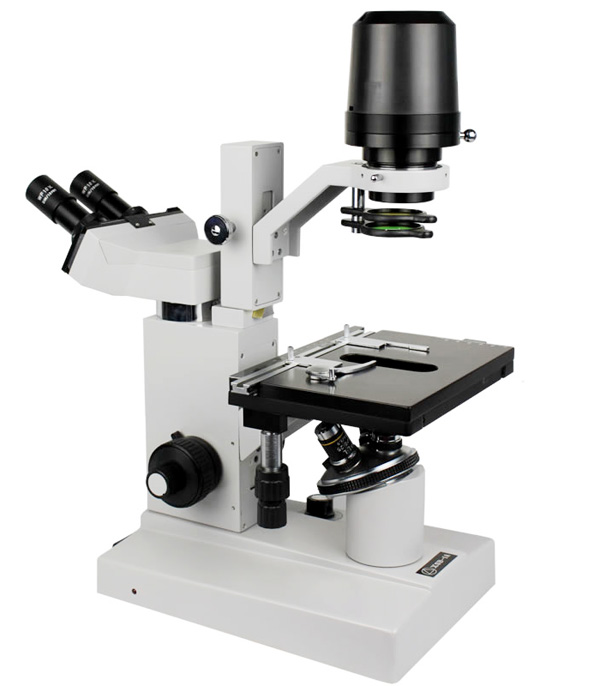

Binocular Inverted Biological Microscope
XSB-1A2
The product is suitable to Micro-examine and research for inspector in Biology of culture ware (or culture bottle) tissue culture of medicine, cell culture, plankton, environment protection, foodstuff inspection and liquid sediment etc.
Plain-field Long Working Distance Objective:
|
Magnification
|
Numerical Aperture(N.A.)
|
Working Distance(mm)
|
Thickness In The Bottom Of Culture Ware(mm)
|
|
4X
|
0.1
|
17.4
|
1.5
|
|
10X
|
0.25
|
8.0
|
1.5
|
|
25X
|
0.4
|
5.0
|
1.5
|
|
40X
|
0.6
|
3.0
|
1.5
|
Total Magnification: 50X-800X
Accessory Objective Magnification: 1.25X
Plan Eyepiece: WF10X (ø18mm) , WF16X(ø11mm)
Coaxial Coarse /Fine Focusing Adjustment Focusing Range: 30mm, Division of Fine Focus Adjustment: 0.002mm
Illumination Elevating Range: 20mm
Interpupillary Adjustment Distance: 55mm-75mm
Mechanical Stage Size: 190mmX145mm,Moving Range: 75mmX50mm, Vernier Division: 0.1mm
Artificial Illumination: 110V, 220V/12V 50W (Halogen Bulb with Adjustable Brightness), Filter (yellow, green): ø43mm
