[XRL-3300E] Zoom Stereo Microscope

855,800

Quantity:

설명

Lab/Industrial Microscope

Zoom Stereo Microscope

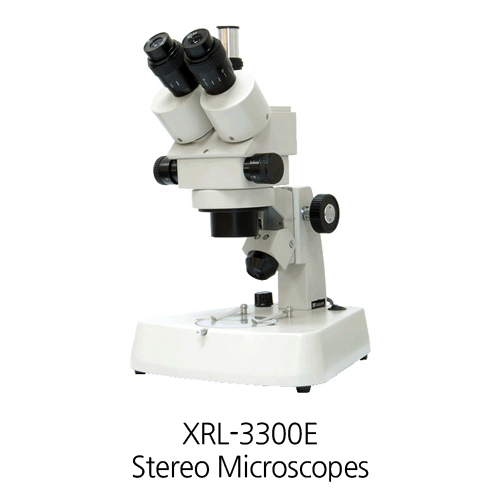

XRL-3300E

XTL Series Zoom Stereo Microscope’s zoom ratio:1:6.5, objective zoom range: 0.7X – 4.5X,  optional all kind of eyepieces, auxiliary objectives. It is suitable to observe and research in the field of teaching biological anatomy, electronic engineering, geology & mine, farming and forestry of plant protection, penal reconnaissance, jewelry appraisal and so on.

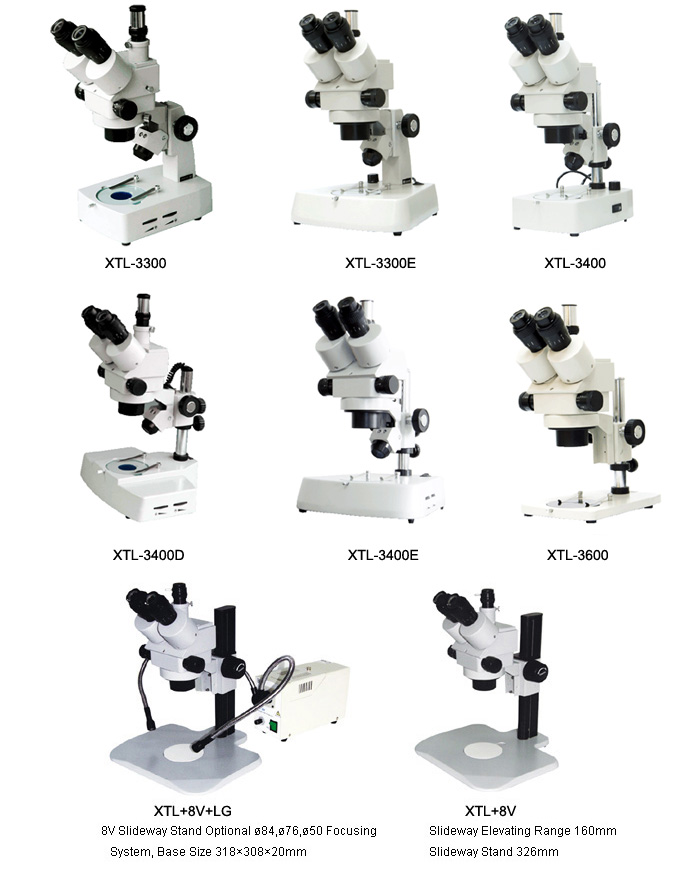

XTL-3000 Series Zoom Stereo Microscope

Specification

Optics System
Inner inclination optical viewing system, stereo viewing angle 13º; inclination at 45º viewing
Zoom Ratio
1:6.5(0.7X – 4.5X)
Eyepiece
WF10X(ø20mm)
Objective
0.7X – 4.5X
Working Distance
95mm
Viewing Field range
5.1mm – 33mm
Interpupillary Adjustable Rang
55mm – 75mm
Round Working Stage Diameter

Ø95mm(Filter Diameter:ø40mm)
Illumination
Free Voltage 100V220V/12V10W halogen bulb with adjustable brightness
