[XTL-0850] 8X-50X Magnification Zoom Stereo Microscopes
₩578,600
설명
Lab/Industrial Microscope

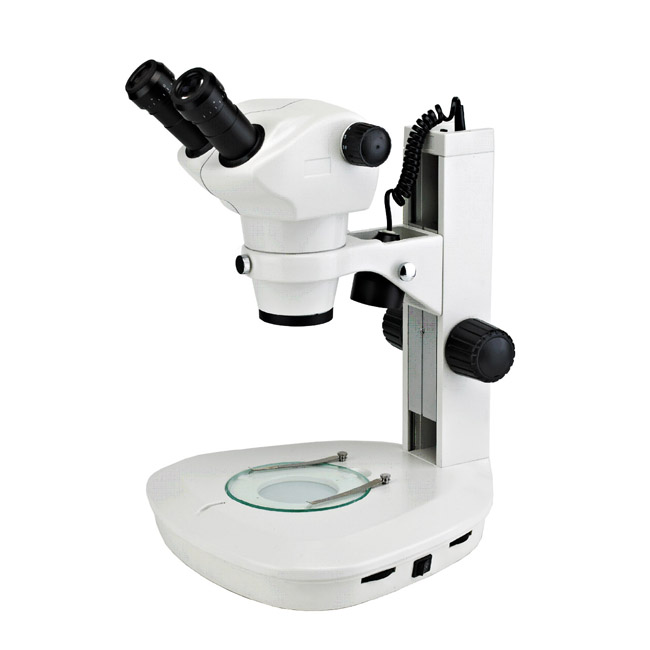

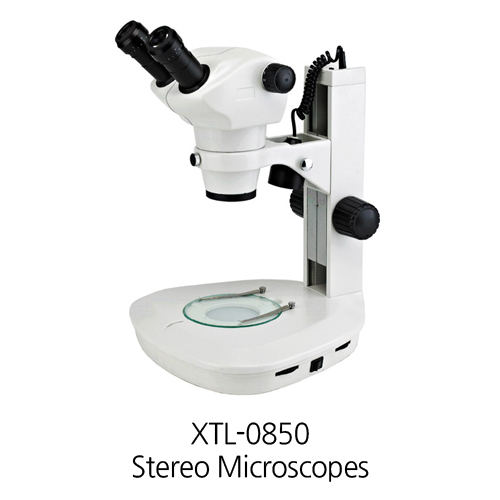

8X-50X Magnification Zoom Stereo Microscopes
XTL-0850
Item # XTL-0850 zoom stereo microscopes meet high-precision requirements on modern biology, medicine, scientific research, inspection lines in modern electronics and other technology industries.
Feature
– Compact and streamlined style, correspond with ergonomic design
– The new design of the optical system, it improved image quality to new levels, agreater range of clear and high resolution.
– Wide field of vision, a large zoom ratio, long working distance
– Integrated design of LED lighting and stand
Specifications
Eyepieces: 10X (10x / FN 22 )
Diopter adjustment: -8D～+5D / Eyepiece micrometer dist mountable
Magnification: 0.8X-5X
Zoom ratio: 6.3:1
Working distance: 115mm
Tube inclination angle: 45°
Interpupillary distance adjustment range: 52mm-75mm
Standard stable stand
Focusing adjustment: 120mm(Focusing stroke)
Stage plate: Glass plate(Ø100mm)
Transmitted illumination: LED lamp
Reflected illumination: LED lamp
Average LED life span: 10,000 hrs
Power: AC 100-240V; 50/60Hz; 10W
Eyepieces:
|
Model
|
F.N. : 22
|
Diopter adjustment
|
Reticle
|
Focal magnification
|
|
10X
|
22
|
D-8～+5
|
Yes
|
|
|
15X
|
16
|
D-8～+5
|
Yes
|
|
|
20X
|
12.5
|
D-8～+5
|
Yes
|
1.3x
|
|
30X
|
7
|
D-8～+5
|
Yes
|
2X
|
Auxilliary objective lens
|
Model
|
Working Distance(mm)
|
|
Regular
|
115
|
|
0.5X
|
211
|
|
2X
|
43.5
|
Optical performance
| Objective lens |
Eyepiece 10X
|
Eyepiece 15X
|
Eyepiece 20X
|
Eyepiece 30X
|
||||
|
22
|
16
|
12.5
|
7
|
|||||
|
Total magnification
|
Field view (mm)
|
Total magnification
|
Field view (mm)
|
Total magnification
|
Field view (mm)
|
Total magnification
|
Field view (mm)
|
|
|
Regular
|
8-50X
|
Φ27.5-Φ4.4
|
12-75X | Φ20-Φ3.2 | 16-100X | Φ15.6-Φ2.5 | 24-150x | Φ8.8-Φ1.4 |
|
0.5x
|
4-25X
|
Φ55-Φ8.8
|
6-37.5X | Φ40-Φ6.4 | 8-50X | Φ31.2-Φ5.0 | 12-75x | Φ17.6-Φ2.8 |
|
2X
|
16-100X
|
Φ13.8-Φ2.2
|
24-150X | Φ10-Φ1.6 | 32-200X | Φ7.8-Φ1.3 | 48-300x | Φ4.4-Φ0.7 |
