[CDMS-253] LCD Digital Binocular Microscope

3,295,000

Quantity:

설명

Lab/Industrial Microscope

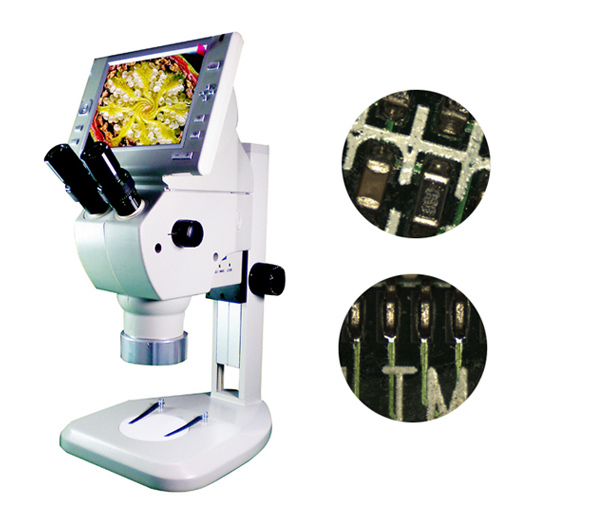

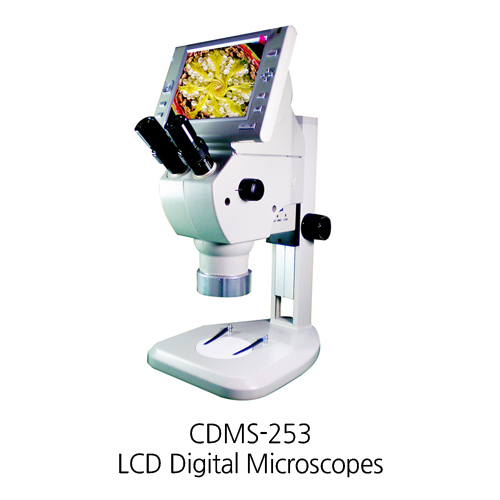

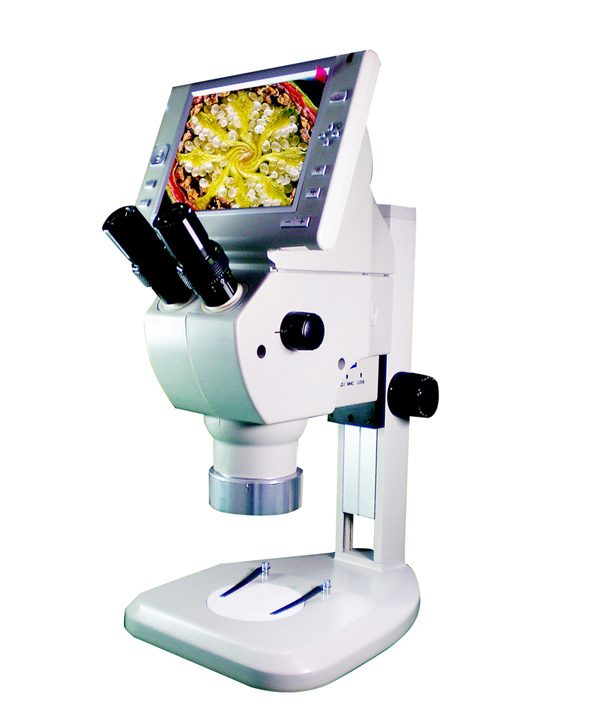

LCD Digital Binocular Microscope

CDMS-253



CDMS-253 binocular digital liquid crystal microscope has renovated the traditional way of microscopic observation and adopted a modern way of digital imaging.
The maximum magnification is 120X.This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time.
It uses an innovative merging of software technology with electronic circuit technology, combining 8inches LCD with a microscope to reverting genuine photo and video .

This unit integrates magnification, built in LED illumination and imaging, display, storage, archiving and printing for easy exchange, all of which allow for a more convenient operation.

This unit is the perfect union of digital and the traditional optics. It can be conveniently applied to testing and inspecting in product assembly,research and teaching fields

Standard function

1. Traditional binocular optical system, wide vision, view depth and great graphic texture as well as clear view area.
2. Horizontal hand-wheel zooming ,stable and comfortable elevation.
3. 5 MEGA pixels with real time imaging display and camera function
4. Time mark in step;
5. Video recording and video re-playing function.
6. 12VDC power supply safety and reliability of low pressure (Voltage 90-240V )
7. USB Cable for Transferring Images to a PC
8. SD Card slot is for storage, archiving and printing easily, optional memory cards (Maximal Storage Capacity is 4G)

Technical parameters:

Digital Parts Model CDMS-253
Pixel 5Mega
Photo Resolution 2560X1920-640X480
Video Resolution 640X480
Sensor Size 1/2.5 Inches
LCD Screen 8 Inches TFT Screen, Resolution is 800X 600
Video Output AV output (NTSC/PAL)
Data Output USB2.0
Menu Language Chinese / English
Storage SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene Mode Standard,/ Softness,/ Vivid
Exposure Mode Auto Exposure
Date Mode Year, Month, Day, Hour, Minute
Optical Parts Viewing Head Binocular Head, Inclined 45°
Eyepiece SWF10X/22mm
Zooming Ratio 1:7.0
Eyepiece Diopter Correction ±Diopters
Working Distance 103mm
Interpupillary Distance 55mm-75mm
Objective Zoom Range 0.65X-4.5X
Optional Parts Eyepiece 10X /20mm with a Reticle, Single Line 10mm/100 ,Cross Hair (0.1mm Micrometer) 15X/20X/25X
Objective 0.5X/0.75X
Base Light Built-in LED Base Illumination: 5W , 45pcs LED bulbs
Longer Stand and Base: Using 0.5X Objective Lens ,Working Distance is 175mm (Max)
