설명
Lab/Industrial Microscope

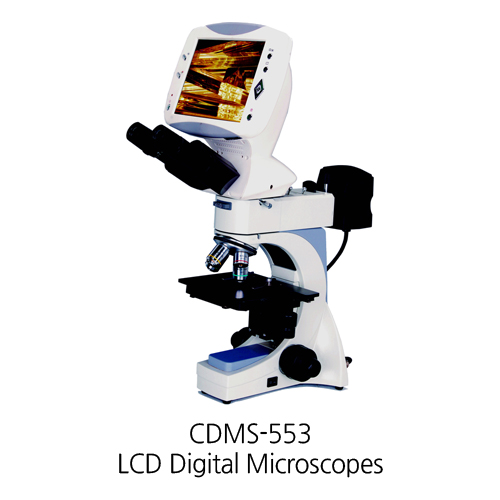

LCD Digital Metallurgical Microscope
CDMS-553
CDMS-553 compound digital LCD metallurgical microscope renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working.It can be use both eyepieces and LCD Screen for convenient and comfortable viewing by individuals and share with groups alike .It is also feature the latest 5 MEGA pixels digital imaging microscopy techniques for quick and easy snapshots or videos.With the features of easy observation ,intelligence and convenient operation ,complete functions and economy, it is widely used for PCB board, LCD display and metal structure observation and inspection
CDMS-533 Compound Digital LCD Metallurgical Microscope Feature and Parameter
| Digital Parts | Pixel | 5Mega | |
| Photo Resolution | 2560X1920-1600X1200 | ||
| Video Resolution | 640X480 | ||
| Sensor Size | 1/2.5 Inches | ||
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 | ||
| Video Output | AV Output (NTSC/PAL) | ||
| Data Output | USB2.0 | ||
| Menu Language | Chinese / English | ||
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) | ||
| Scene Mode | Standard / Softness / Vivid | ||
| Exposure Mode | Auto Exposure | ||
| Date Mode | Year, Month, Day, Hour, Minute | ||
| Optical Parts | Viewing Head | Compensation Free Binocular Head, 30° Inclined , Interpupillary Distance 55-75mm | |
| Eyepiece | Wide Field Eyepiece WF10X/18 | ||
| Objective | Infinity Plan Achromatic | 4×/0.1/T/- WD25.4mm | |
| 10×/0.25/T/- WD11.0mm | |||
| 20×/0.40/T/- WD6.0mm | |||
| 40×/0.60/T/0 WD3.7mm | |||
| Nosepiece | Quadruple Nosepiece | ||
| Stage | Double Layers Mechanical Stage 150mmX140mm / 75mmX50mm | ||
| Focusing System | Coaxial Coarse/Fine Focus System | ||
| Illumination | Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable | ||
| Filters | Blue, Green, Yellow & Ground Glass | ||
| Optional Parts | Eyepiece | WF8×/18 | |
| WF10×/18 with 0.1mm Micrometer & Cross Hair | |||
| WF12.5×/15 | |||
| Objective | Infinity Plan Achromatic | 40×/0.65/T/- WD0.78mm | |
| 50×/0.75/T/- WD0.32mm | |||
| 80×/0.90/T/- WD0.2mm | |||
| 100×/0.90/T/0 WD0.7mm | |||
| Illumination | Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable | ||
| Simple Polarization Attachment | Polarization Set | ||

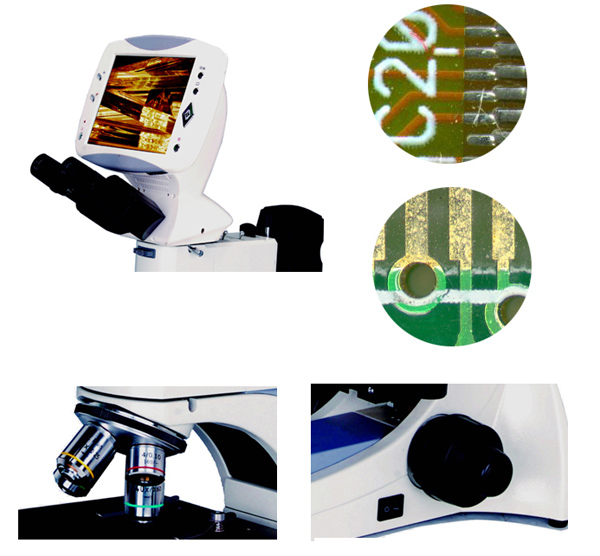

The first domestic compound digital microscope with the function of imaging capture ,video and storage.
1 5Megapixels advanced professional grade digital camera
2 Built-in digital camera for quick and easy imaging caputure or short videos
3 Built-in Mega Byte memory provides storage for your pictures and videos.The SD Card slot allows you to expand the storage capacity with optional memory cards. No need to connect to PC and print the photo in step.
1 Power Connection 12V DC power supply safety and reliability of low pressure
2 AV output Easy to view and operation
3 USB Outport Data transmission is more effective
5 Megapixels digital imaging microscopy
