설명
Lab/Industrial Microscope

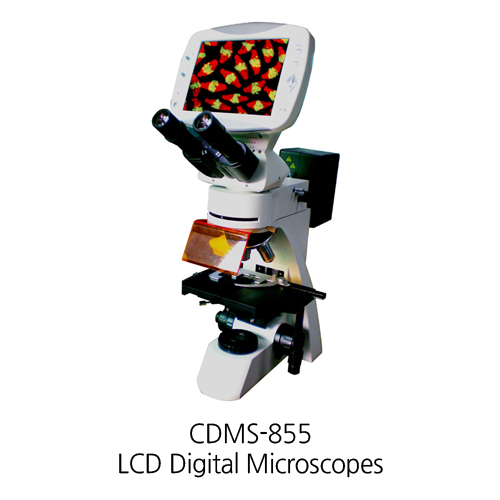

Compound LCD Digital Fluorescence Microscope
CDMS-855
CDMS-855 is used for fluorescence microscopy and transmitted field observation. It is equipped with infinity plan achromatic objectives and wide field eyepieces,have clear picture and wide view field,It is the ideal instrument inbiology, cytology, oncology, genetics,immunology etc, It also can be used in scientific research,universities,medical treatment,epidemic prevention etc.
Specification
| Digital Parts | Pixel | 5 Mega |
| Maximal Resolution | 2560X1920 | |
| Video Resolution | 640X480 | |
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 | |
| Video Output | AV Output (NTSC/PAL) | |
| Data Output | USB2.0 | |
| Menu Language | Chinese / English | |
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) | |
| Scene Mode | Standard / Softness / Vivid | |
| Exposure Mode | Auto Exposure | |
| Date Mode | Year, Month, Day, Hour, Minute | |
| Optical Parts | Eyepiece | Wide Field WF10X/20mm |
| Nosepiece | Quintuple (Backward Ball Bearing Inner Locating) | |
| Objective | Infinite Plan Achromatic Objective 4 X/0.10,10 X/0.25,40 X/0.65(Spring),100 X/1.25(Spring oil) | |
| Condenser | Swing Condenser NA 0.9/0.25 | |
| Focusing System | Coaxial Coarse /Fine Focus,with Tensional Adjustable and up Stop Minimum Division of Fime Focusing ;2μm | |
| Stage | Double Layers Mechanical (Size:210mm X140mm.Move Range:75 X50mm | |
| Abbe Condenser | N.A.1.25 Rack&Pinion Adjustable | |
| Filter | Blue Filter,Frosted dFilter | |
| Collector | For Halogen Lamp | |
| Light Source | 6V 20W halogen Lamp,Adjustable Brightness | |
| Reflected Fluorescence | Mercury Lamp Houes 100W/DC | |
| Power Supply Unit:AV:100V or 220V | ||
| Fluorescence Filter system B Exciton Wavelength:420-485nm | ||
| Fluorescence Filter system G Exciton Wavelength:460-550nm | ||
| Fluorescence Filter system UV Exciton Wavelength:330-400nm | ||
| Fluorescence Filter system V Exciton Wavelength:395-415nm |
