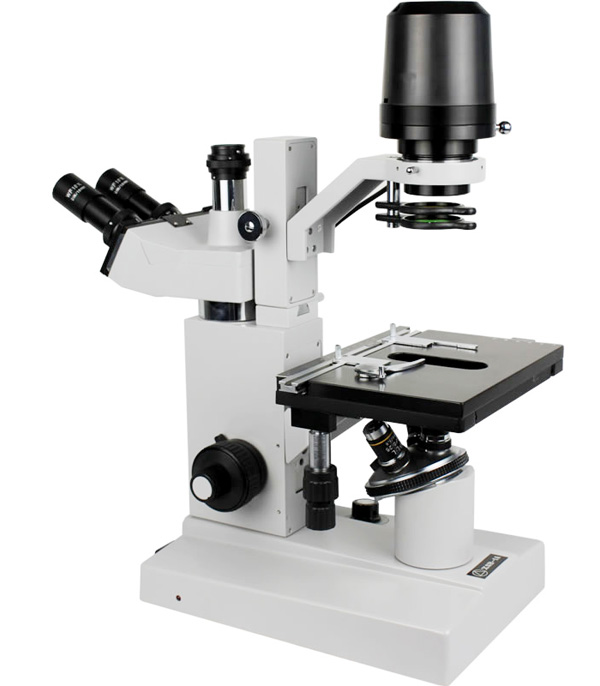

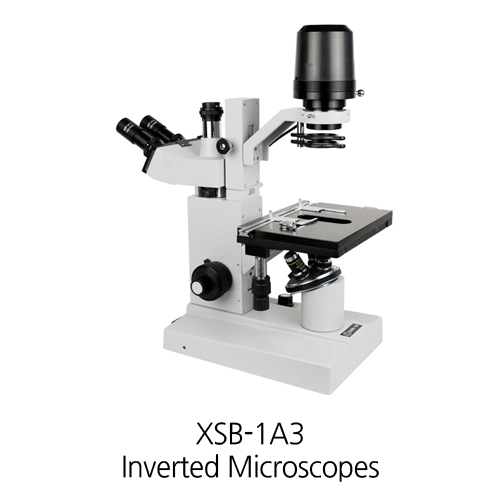

[XSB-1A3] Trinocular Inverted Biological Microscope

1,558,000

Quantity:

설명

Lab/Industrial Microscope

Trinocular Inverted Biological Microscope

XSB-1A3





The product is suitable to Micro-examine and research for inspector in Biology of culture ware (or culture bottle) tissue culture of medicine, cell culture, plankton, environment protection, foodstuff inspection and liquid sediment etc.

Plain-field Long Working Distance Objective:

Magnification
Numerical Aperture(N.A.)
Working Distance(mm)
Thickness In The Bottom Of Culture Ware(mm)
4X
0.1
17.4
1.5
10X
0.25
8.0
1.5
25X
0.4
5.0
1.5
40X
0.6
3.0
1.5

Total Magnification: 50X-800X
Accessory Objective Magnification: 1.25X
Plan Eyepiece: WF10X (ø18mm) , WF16X(ø11mm)
Coaxial Coarse /Fine Focusing Adjustment Focusing Range: 30mm, Division of Fine Focus Adjustment: 0.002mm
Illumination Elevating Range: 20mm
Interpupillary Adjustment Distance: 55mm-75mm
Mechanical Stage Size: 190mmX145mm,Moving Range: 75mmX50mm, Vernier Division: 0.1mm
Artificial Illumination: 110V, 220V/12V 50W (Halogen Bulb with Adjustable Brightness), Filter (yellow, green): ø43mm
